Induction Heaters
Leading Manufacturers, Exporters, Wholesaler and Retailer of End Bar Induction Heater, G-10-G-20 Induction Heater, G-25-G-30 Billet Induction Heater, G-50 Billet Induction Heater and Long Bar Induction Heater from Gandhinagar.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Power Rating | 75 KW TO 600 KW |
| Frequency | 1 KHZ to 10 KHZ |
| Size | 1.2 Mtr X 3 Mtr X 1.2 Mtr with 6 Mtr Bar Loader. |
| Automation | Remote Control Desk with Touch Screen |
| Loading System | Auto Loader with Guide Roller |
| Water System | Separate with Alfa Laval Heat Exchanger |
Preferred Buyer From
| Location | Worldwide |
Plasma End Bar and Partial heating system are divided into two groups.Horizontal end bar and vertical end bar heater.All the systems are powered by plasma advance digital control system with fully automatic microprocessor-based mechanism.End Bar Heating System particularly well suited for fasteners and agricultural tools.Coil moving system with auto loader rotary table, rack & pinion mechanism etc.
Application
- Fasteners manufacturer
- Forging with UP Setter
- Axle & Shaft manufacturer
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Power Rating | 40KW TO 100KW |
| Frequency | 3 KHZ to 50 KHZ |
| Size | 1 Mtr X 1.5 Mtr X 1.5 Mtr |
| Automation | Optional |
| Loading System | Manual / Pneumatic Pusher |
| Water System | Inbuilt on single Platform |
Preferred Buyer From
| Location | Worldwide |
Fully IGBT based Induction Heater with Voltage inverter series topology. And it’s Give a better productivity. It’s consist of Plate Type (Alfa Laval) Heat Exchanger with Water Pump (S.S. Body) along with valves. Safety Interlocks.Special Feature of Unity power factor, Negligible Scale loss, Uniformity Control,Compact Modular Design, 2.75kg / KW productivity.
Application
- Forging Industries
- Auto Component manufacturing
- Fasteners manufacturing
- Engineering Parts manufacturing
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Power Rating | 125 KW TO 300KW |
| Frequency | 3 KHZ to 20 KHZ |
| Size | 1 Mtr X 2 Mtr X 1.2 Mtr |
| Automation | Optional with touch screen |
| Loading System | Pneumatic / Hydraulic Pusher / Infeed drive |
| Water System | separate with Alfa Laval Heat Exchanger |
Preferred Buyer From
| Location | Worldwide |
100% 6th Generation IGBT based series resonant power topology-based induction heater. Accessories of Automatic billet feeding system, Automatic heavy-duty elevator, Infrared non-contact pyrometer, 2 way /3 way accept reject system. Safety interlock with feature of exceptionally superior performance,loss motion detection,standby & rapid start/stop,energy monitoring system,epoxy insulated coil winding.
Application
- Forging Industries
- Auto Component manufacturing
- Engineering Parts manufacturing
- Agriculture parts manufacturing
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Power Rating | 300KW TO 2000KW |
| Frequency | 3 KHZ to 6 KHZ |
| Size | 1.2 Mtr X 3.5 Mtr X 1.2 Mtr |
| Automation | Optional with touch screen |
| Loading System | Stacker mechanism/ Stepper Feeder |
| Water System | Separate with Alfa Laval Heat Exchanger |
Preferred Buyer From
| Location | Worldwide |
100% 6th Generation IGBT based series resonant power topology-based induction heater. Accessories of stepper feeder with bin tipper, conveyor with hydraulic pusher (stacker), coil shutter mechanism,heavy duty in feed conveyor with tractor drive,pneumatic grabber system, non-contact infrared pyrometer, and 3ways accept/reject system.
Application
- Forging Industries
- Auto Component manufacturing
- Engineering Parts manufacturing
- Agriculture parts manufacturing
- Pipe Industries

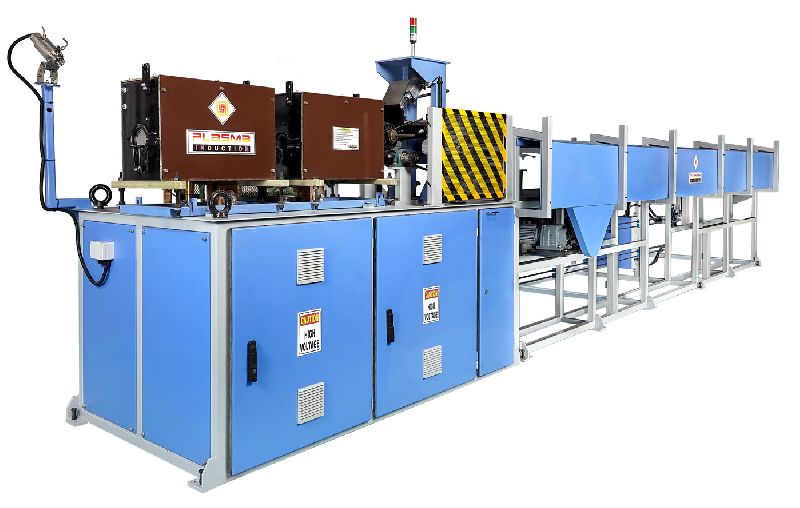

| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Power Rating | 75KW TO 600 KW |
| Frequency | 1 KHZ to 10 KHZ |
| Size | 1.2 Mtr X 3 Mtr X 1.2 Mtr with 6 Mtr Bar loader |
| Automation | Remote control desk with touch screen |
| Loading System | Auto Loader with guide roller |
| Water System | Separate with Alfa Laval Heat Exchanger |
Preferred Buyer From
| Location | Worldwide |
100% 6th Generation IGBT based series resonant power topology-based induction heater. Accessories of automatic feeder with chain conveyor,bar rejection system.Heavy duty & robust automatic loading system consisting of auto ramp loader,pneumatic bar lifting arrangement,motorized drive rollers with chain conveyor,pinch roller assembly,auto rejects mechanism for overheating reject bars,3 way accept/reject system,non-contact infrared pyrometer.
